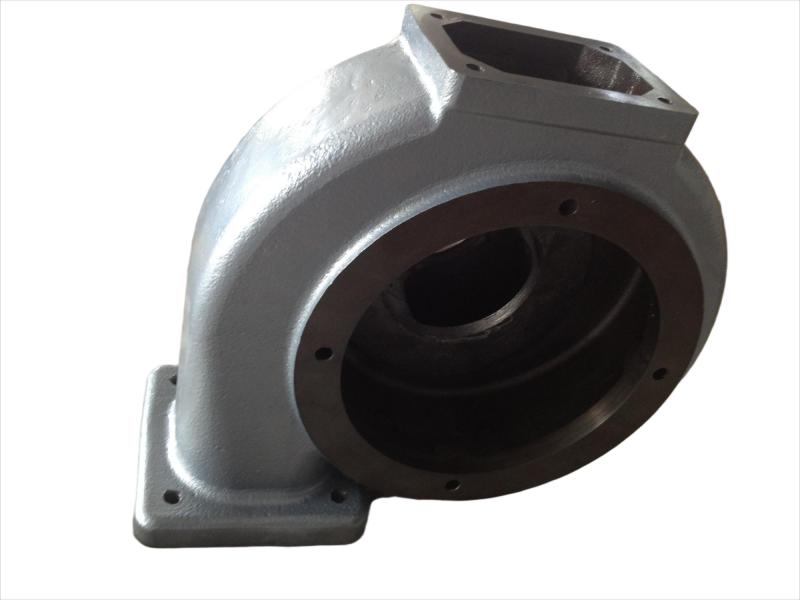

Custom Top Mount Engine Exhaust Manifold

Custom Top Mount Engine Exhaust Manifold

Custom Top Mount Engine Exhaust Manifold

Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30

Casting Manufacturing: Green Sand Casting, Shell Molding

Application: Diesel Engine

Weight: 10 kg

Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

New products

The grey iron exhaust manifold is the pipe that carries the gas out of the engine of a vehicle. When you start your car, a little gasoline gets turned into a mixture of gases and soot that come out of the exhaust pipe.

OEM & ODM Cast Iron Diesel Engine for Industry from Hengchang Foundry

Hengchang is a OEM exhaust Pipe manufacturer. We have produced lots of grey cast Iron casting exhaust manifold pipe for diesel engine.

Gray iron, or grey cast iron, is a type of cast iron that has a graphitic microstructure. It is named after the gray color of the fracture  it forms, which is due to the presence of graphite. It is the most common cast iron and the most widely used cast material based on weight.

It is used for housings where the stiffness of the component is more important than its tensile strength, such as internal combustion engine cylinder blocks, pump housings, valve bodies, electrical boxes, and decorative casting. Grey cast iron's high thermal conductivity and specific heat capacity are often exploited to make cast iron cookware and disc brake and rotors.

The Structure of Grey Iron

A typical chemical composition to obtain a graphitic microstructure is 2.5 to 4.0% carbon and 1 to 3% silicon  by weight. Graphite may occupy 6 to 10% of the volume of grey iron. Silicon is important for making grey iron as opposed to white cast iron, because silicon is a graphite stabilizing element in cast iron, which means it helps the alloy produce graphite instead of iron carbides; at 3% silicon almost no carbon is held in chemical form as iron carbide. Another factor affecting graphitization is the solidification rate; the slower the rate, the greater the time for the carbon to diffuse and accumulate into graphite. A moderate cooling rate forms a more pearlitic matrix, while a fast cooling rate forms a more ferritic matrix. To achieve a fully ferritic matrix the alloy must be annealed. Rapid cooling partly or completely suppresses graphitization and leads to the formation of cementite, which is called white iron.

The graphite takes on the shape of a three-dimensional flake. In two dimensions, as a polished surface, the graphite flakes appear as fine lines. The graphite has no appreciable strength, so they can be treated as voids. The tips of the flakes act as preexisting notches at which stresses concentrate and it therefore behaves in a brittle manner. The presence of graphite flakes makes the grey iron easily machinable as they tend to crack easily across the graphite flakes. Grey iron also has very good damping capacity and hence it is often used as the base for machine tool mountings.

Advantages and disadvantages of Grey Iron

Gray iron is a common engineering alloy because of its relatively low cost and good machinability , which results from the graphite lubricating the cut and breaking up the chips. It also has good galling and wear resistance because the graphite flakes self lubricate. The graphite also gives gray iron an excellent damping capacity because it absorbs the energy and converts it into heat.Grey iron cannot be worked (forged, extruded, rolled etc.) even at temperature.

Relative damping capacity of various metals
Materials Damping capacity
Gray iron (high carbon equivalent) 100–500
Gray iron (low carbon equivalent) 20–10
Ductile iron 5–20
Malleable iron 8–15
White iron 2–4
Steel 4
Aluminum 0.47
†Natural log of the ratio of successive amplitudes


Gray iron also experiences less solidification shrinkage than other cast irons that do not form a graphite microstructure. The silicon promotes good corrosion resistance and increased fluidity when casting.Gray iron is generally considered easy to weld.Compared to the more modern iron alloys, gray iron has a low tensile strength and ductility ; therefore, its impact and shock resistance  is almost non-existent.

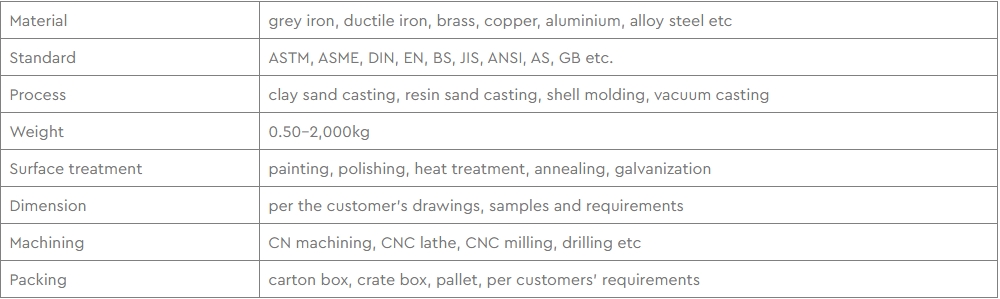

Product detail



Material Gray iron ,ductile iron, brass, carbon steel, copper, aluminum, alloy steel, etc
standard ASTM, ASME,DIN, EN, BS, JIS, ANSI, AS,GB etc.
process Green sand casting ,resin sand casting, shell molding casting,vacuum casting, continuous concast, machining
Weight range 0.5-2,000kg
Surface treatment painting, polishing, heat treatment, annealing or galvanization etc.
Size and design As per the customer's drawings, samples and requirements
Machining complete machining such as CN machining,CNC lathe,CNC milling,drilling etc.
Packing As per customers' requirements
Inspection in-house or the third Party

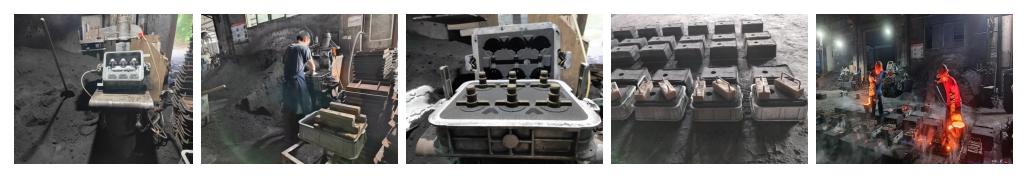

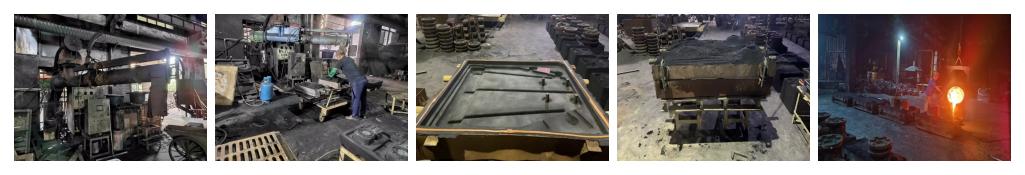

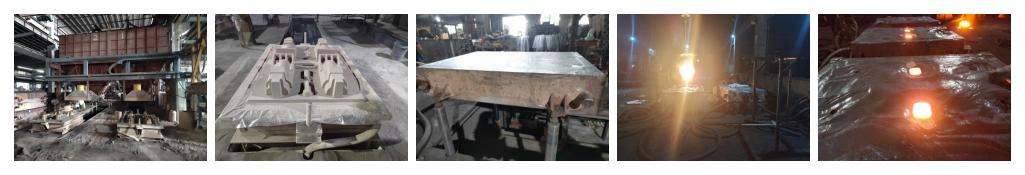

Our Advantages in Sand Casting Field:

• Over 15 years of experience in sand casting, shell molding casting and machining technology.
• Dimensionally accurate cores for complex internal contours.
• Strictly control the raw materials.
• Quality management throughout the production process and maximum process reliability.

Available Grade of Gray Iron in our Foundry:  FC150, FC200, FC250, HT150, HT200, HT250; EN-GJL-150, EN-GJL-200, EN-GJL-250, GJL-250

Hengchang are producing various grey iron casting products for overseas customers in Japan, USA, Canada, Germany, Danmark, Russia and Dubai.

Zhangzhou Hengchang Machinery Manufacturing Co.,Ltd Gas Vent

Exhaust Manifold

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • China CNC Machining Pumps

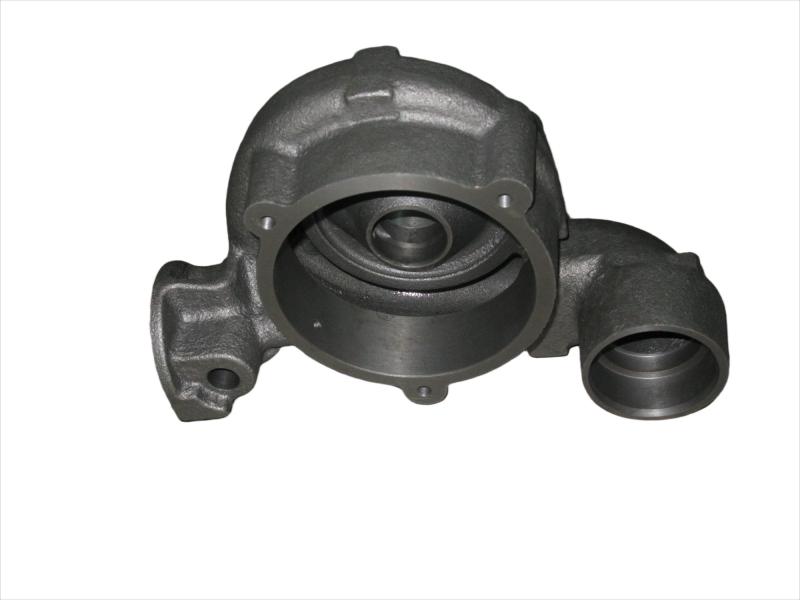

    China OEM Grey Iron Oil Pump Housings

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • China Heavy Duty Casting Bearings
    Heavy Duty Cast Iron Bearing Block

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • OEM Cast Iron Diesel Engine Parts
    Custom Top Mount Engine Exhaust Manifold

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

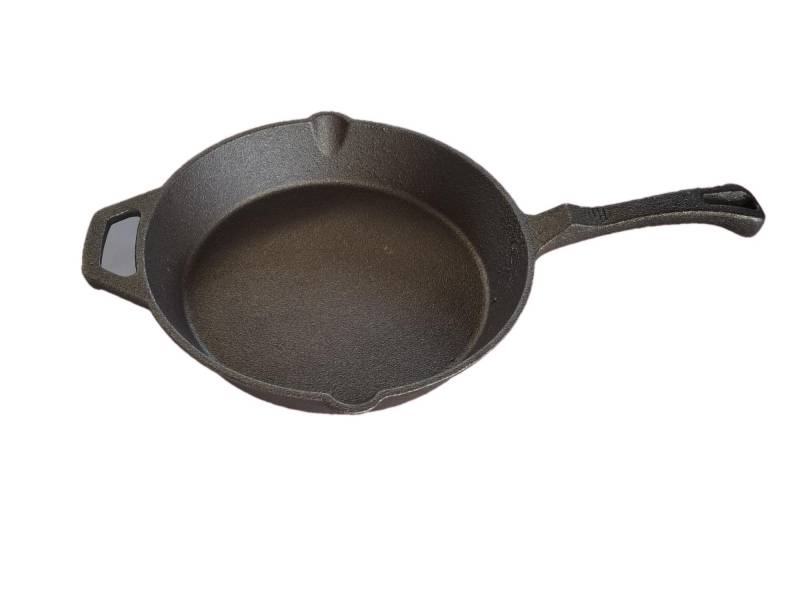

  • Safety Multi Functional Cast Iron Skillet

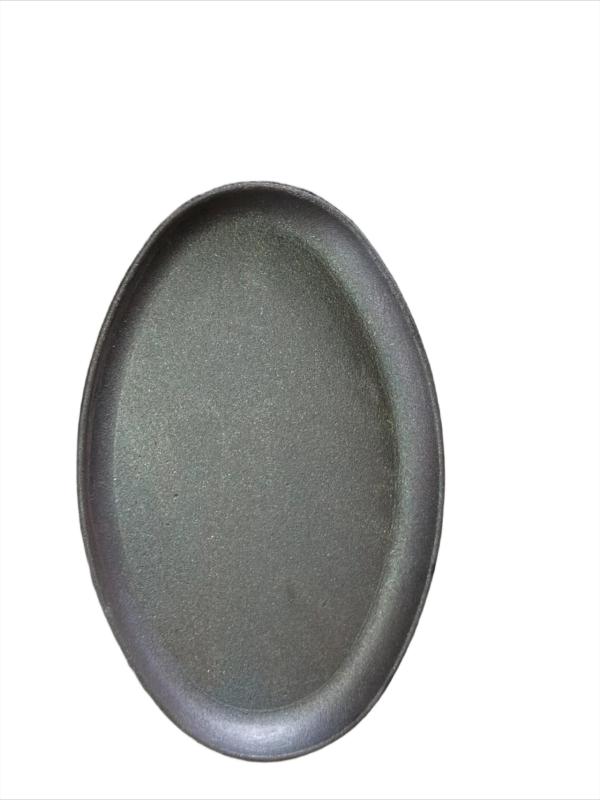

    High Quality Cast Iron Cookware Frying Pan

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • OEM China Iron Pan Manufacturer
    Best Popular Strip Cast Iron Steak Pan

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

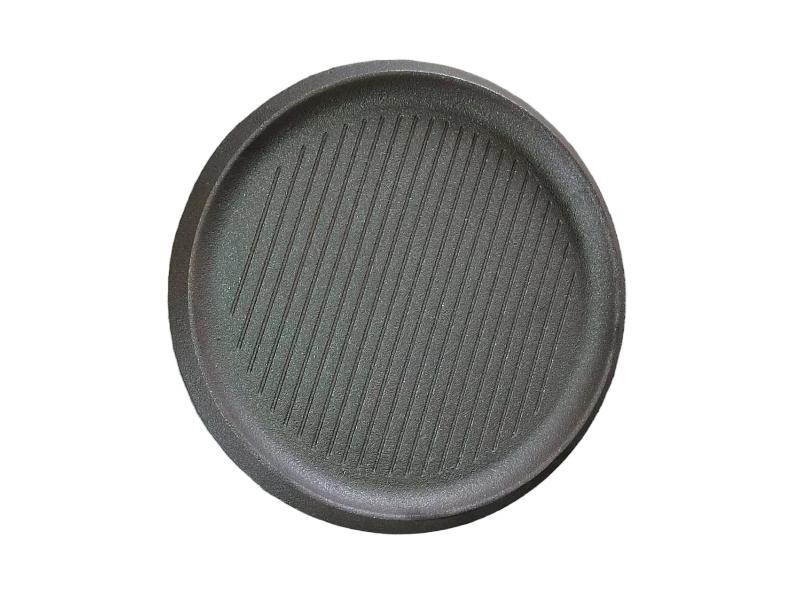

  • best cast iron round skillet
    Custom Cast Iron Pan for Barbecue

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • Custom Grey Iron Disc Brake

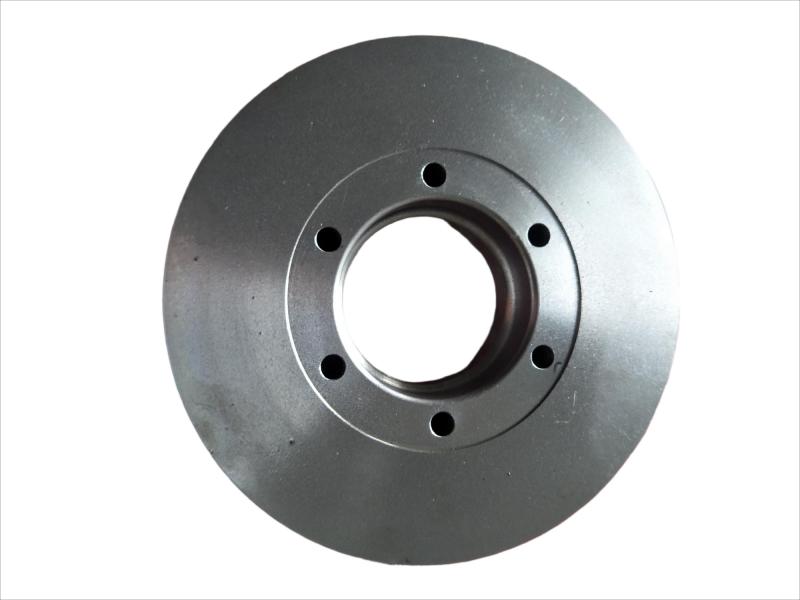

    Custom Auto Parts Disc Brake

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

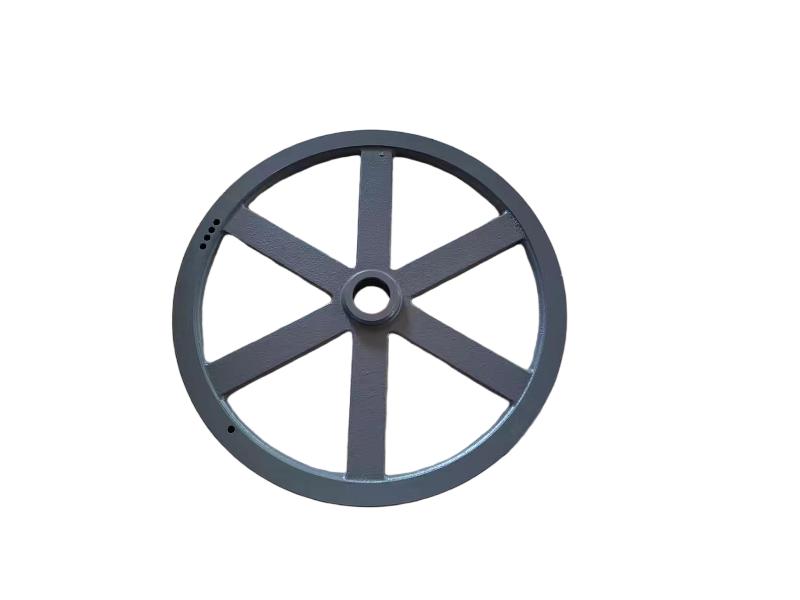

  • Custom Green Sand Casting Pulley

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • Hip Training Grey Iron Dumbells

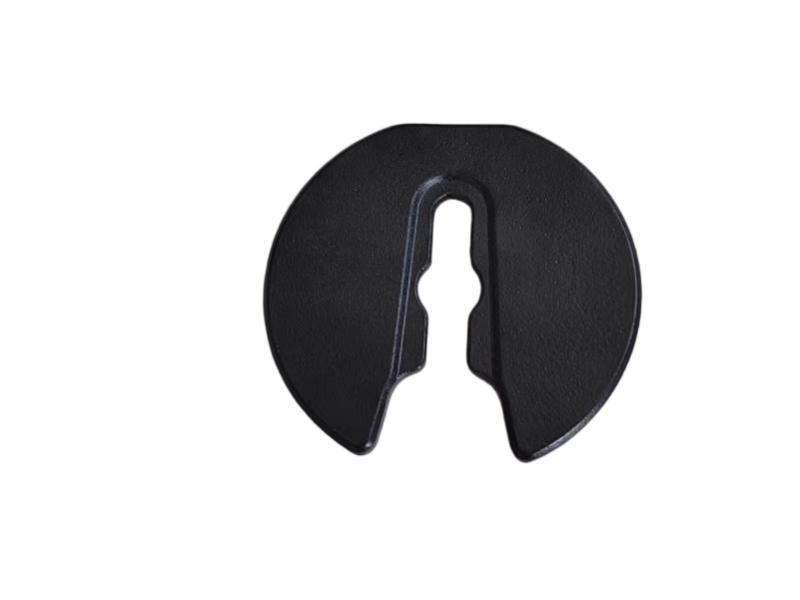

    Grey Iron Fitness Equipment Dumbbell

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

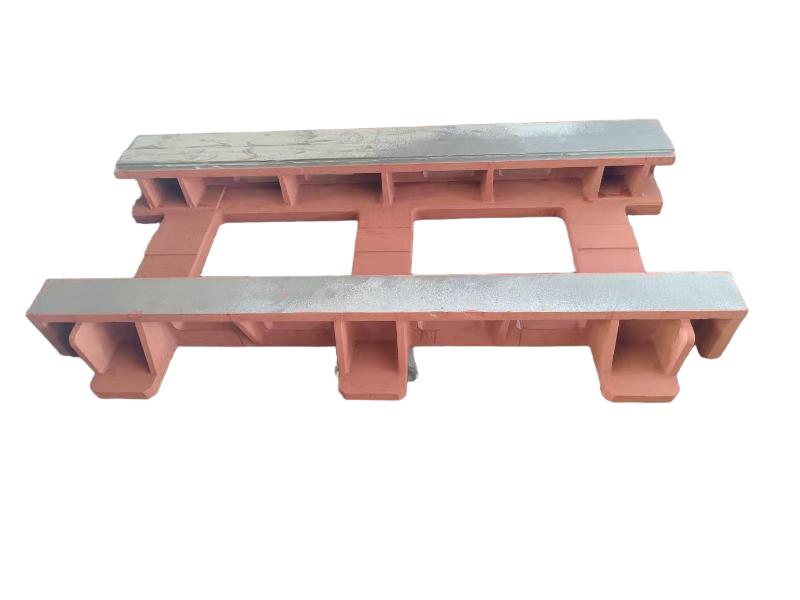

  • Grey Iron Machine Tools Accessories
    OEM Grey Iron Plates Frames & Bases for the Construction & Pre Machining Industries

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

  • wate works cast iron curb boxes
    Gray Iron Casting Water Works Lids

    Casting Metals: Grey Cast Iron, GG10, GG15, GG20, GG25, GG30 Casting Manufacturing: Green Sand Casting, Shell Molding Application: Diesel Engine Weight: 10 kg Available Surface Treatment:  Painting, Anodizing, Passivation, Electroplating, Zinc-plating, Hot-Zinc-Plating, Polishing, Electro-Polishing, Nickel-Plating, Blackening, Geomet, Zintek

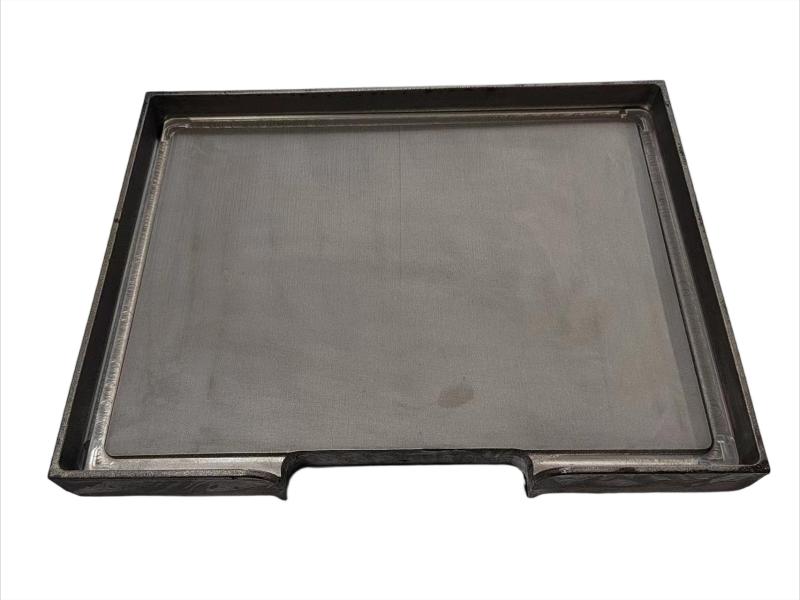

  • Metal Cast Iron Boards by Vacuum Casting
